This was my final project for my first semester Studio class at George Brown College. The task was to draft:

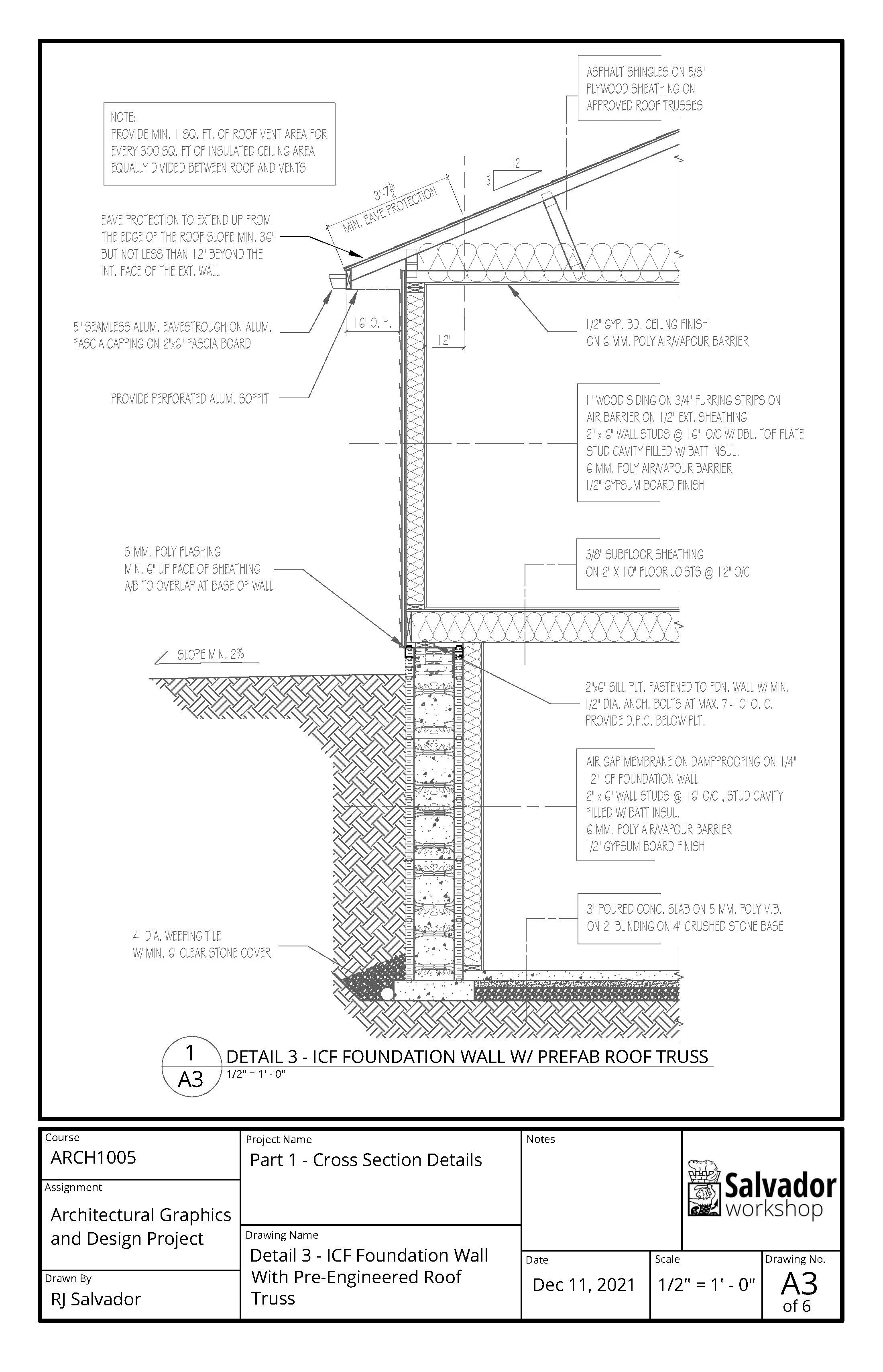

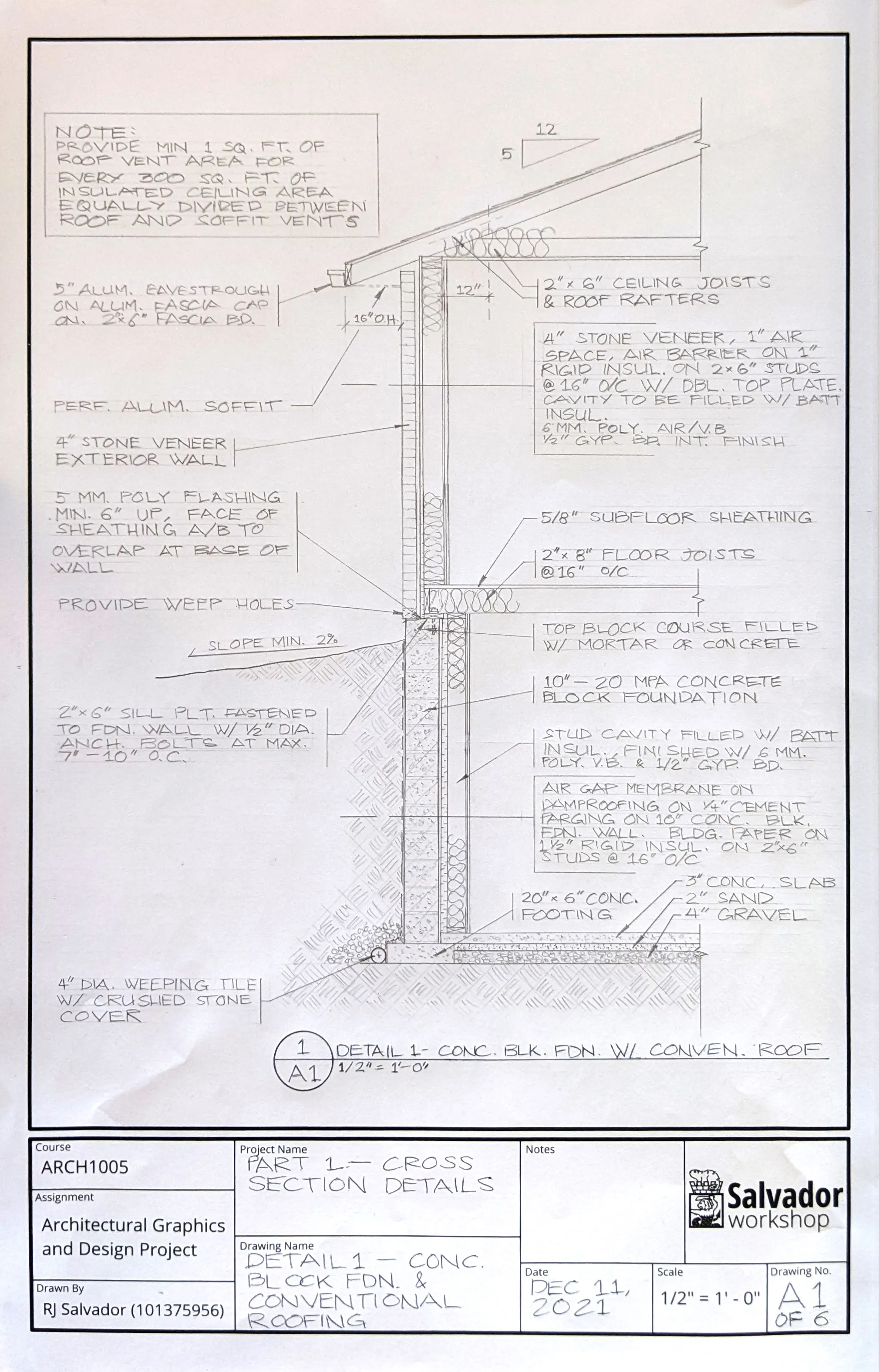

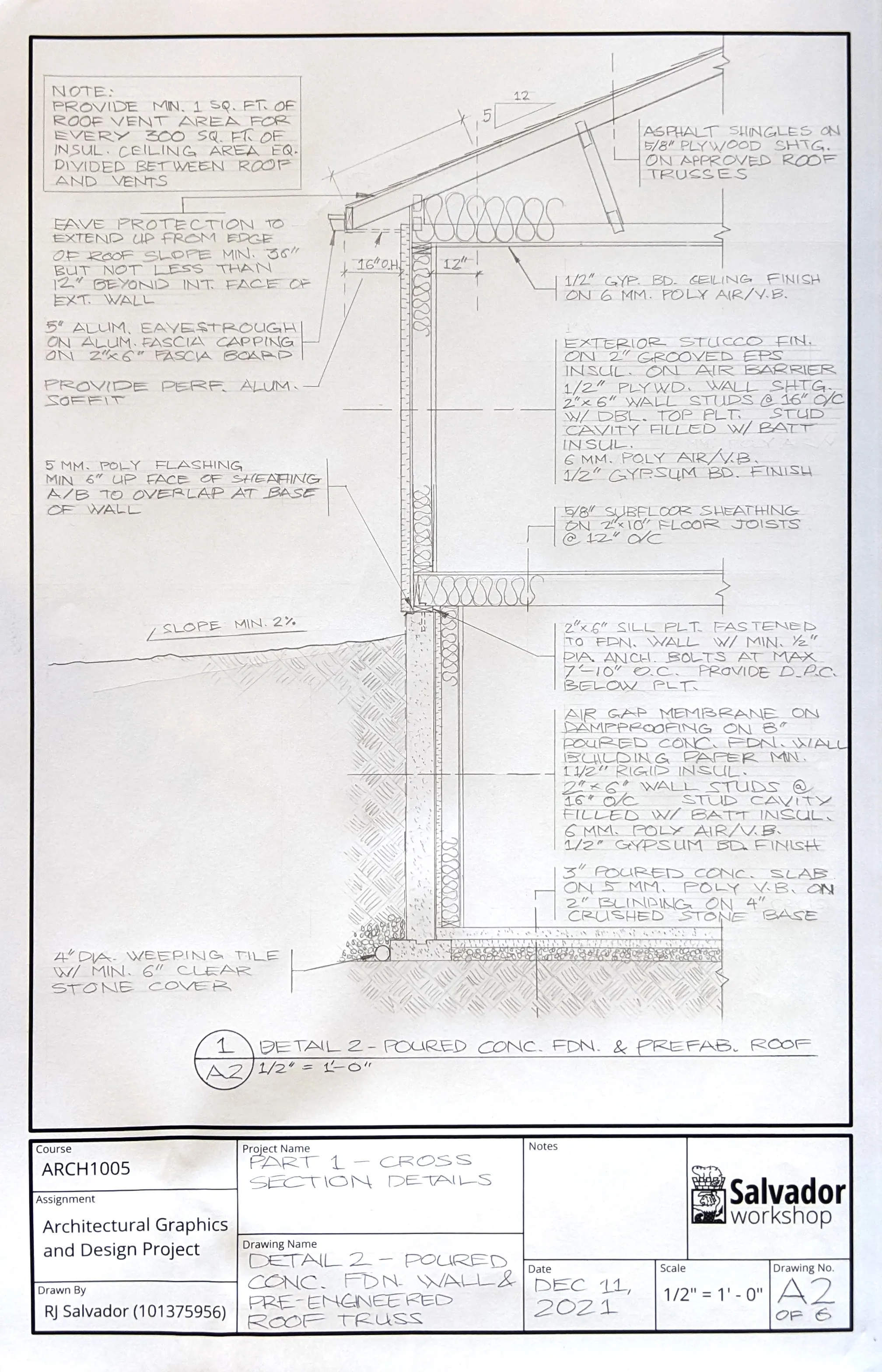

1. Typical wall sections, as constructed in Ontario

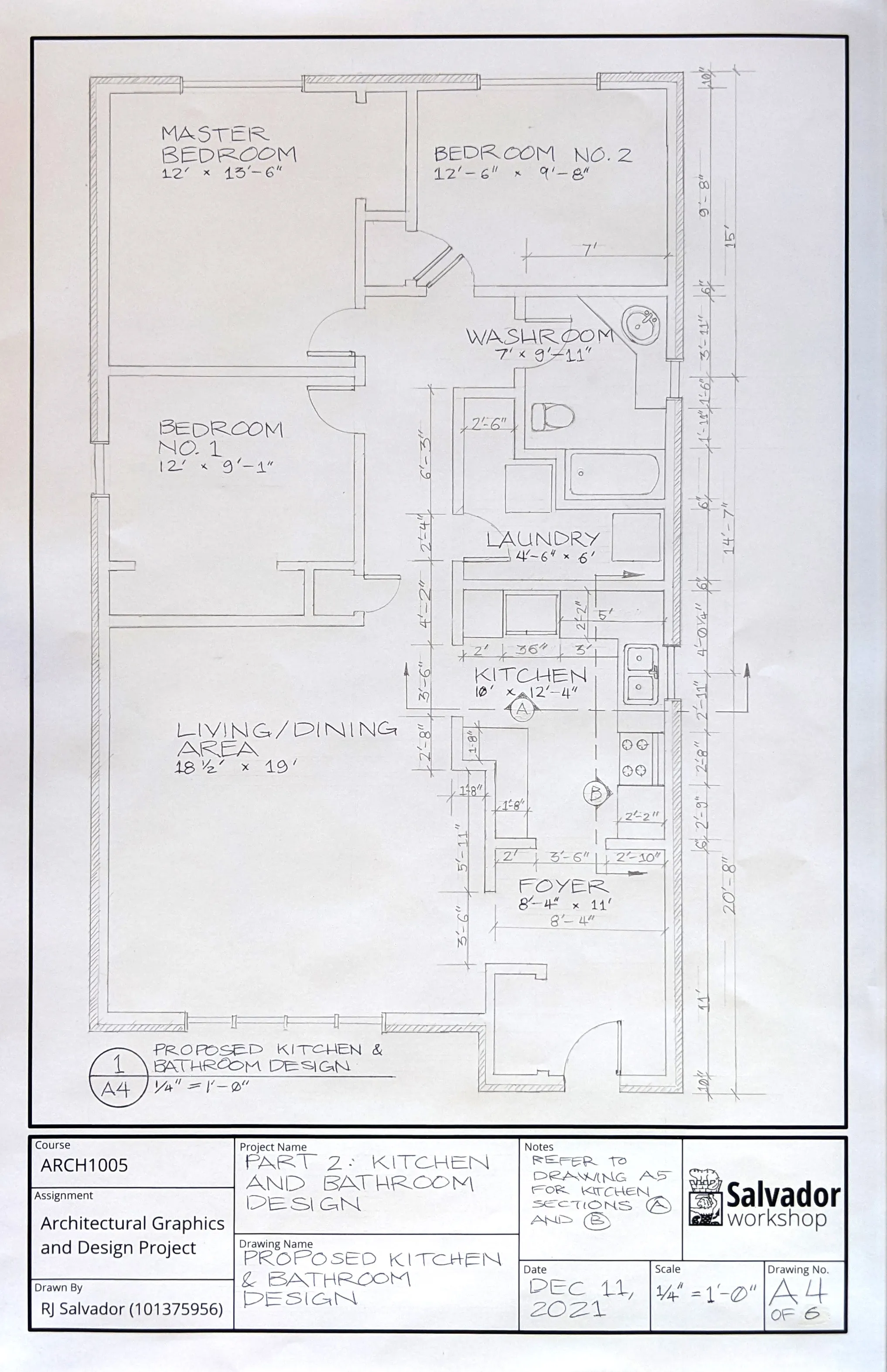

2. Kitchen/Bathroom design (plan), working with a pre-determined envelope and bedrooms

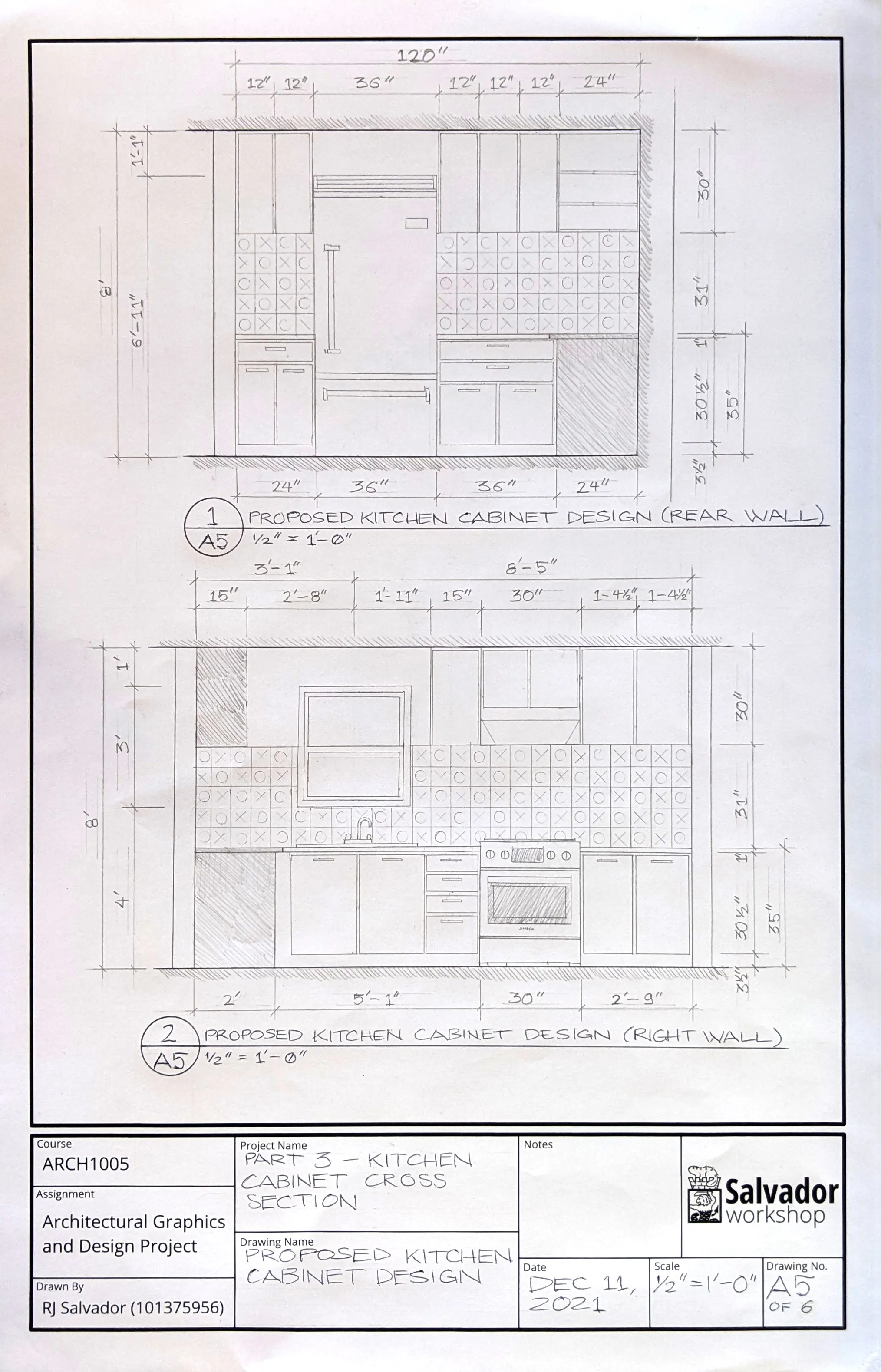

3. Kitchen cabinet design (elevations)

All sheets are tabloid sized (17” x 11”), with my title blocks done in AutoCAD.

Wall Sections

Kitchen/Bathroom Plan

Kitchen Elevations/Sections
