Architecture Tech, Revit 2

Education

Here’s a few shots of my final project for a Revit 2 class at George Brown College. The task was to build up a Manor House over two semesters and show:

  1. Rendered scenes of the house
  2. Site plan and floor plans, roof plans
  3. Elevations
  4. Sections

Renders, Elevation

Manor House - rendered scenes

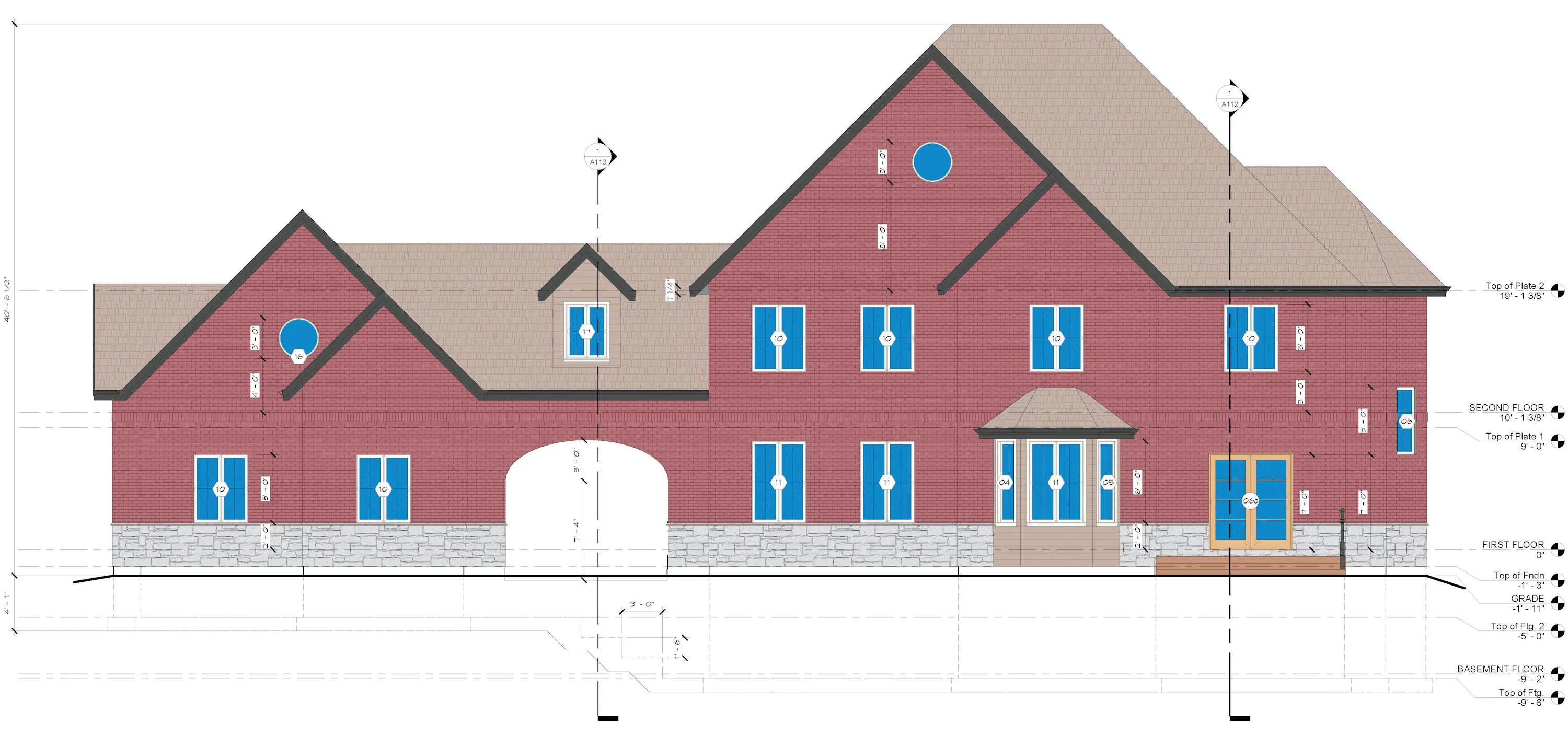

Manor House - front elevation

Plans

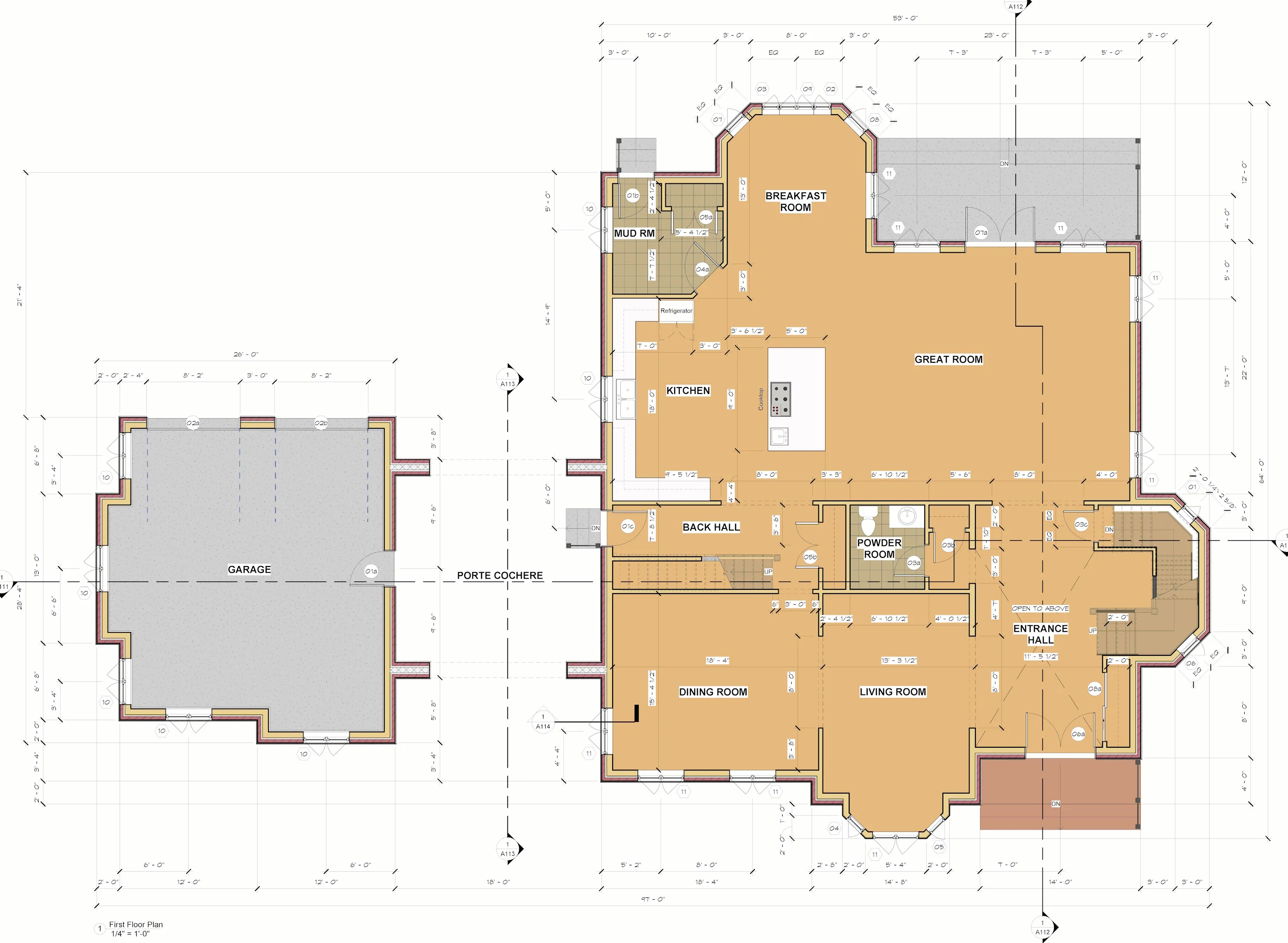

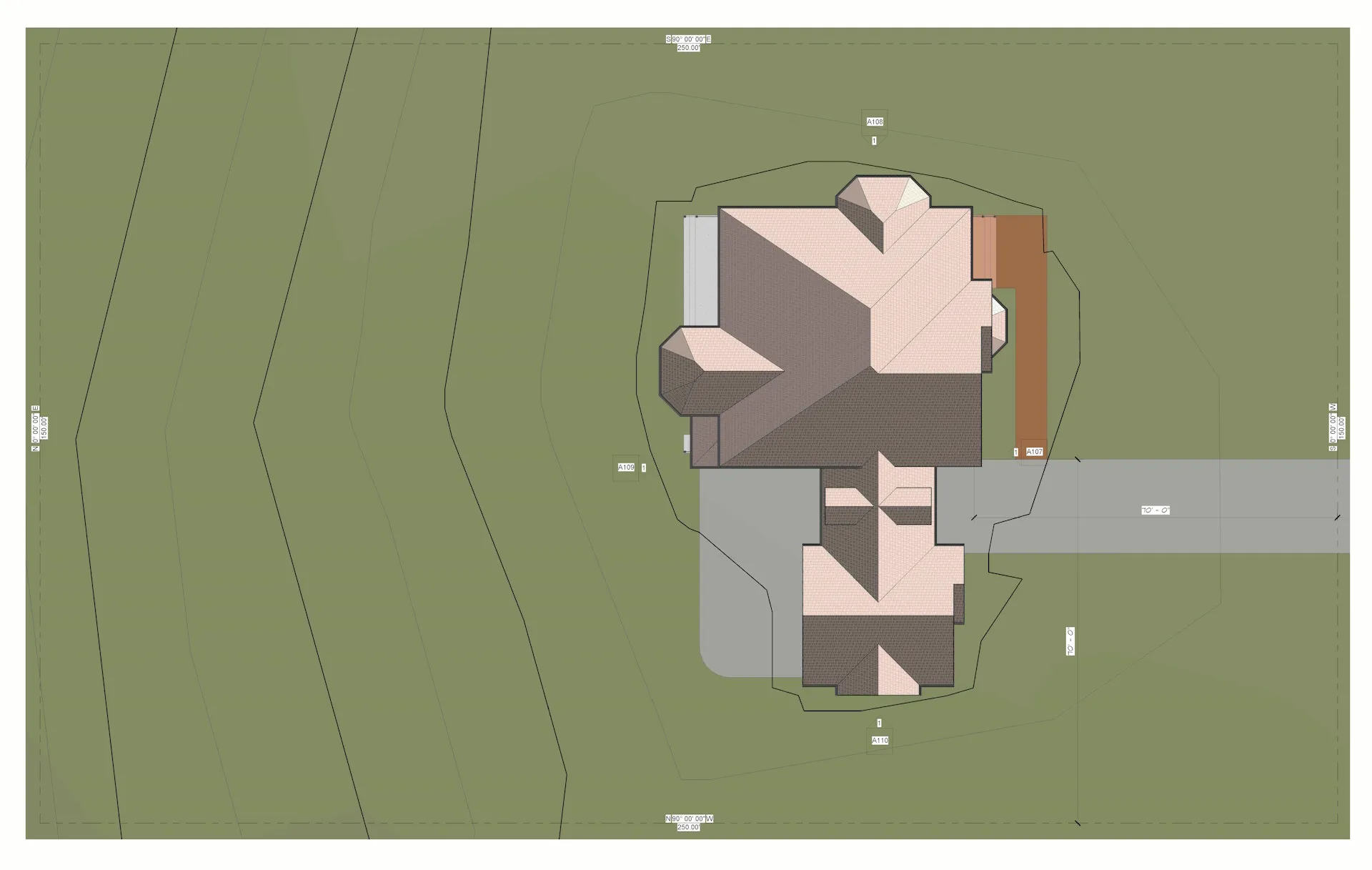

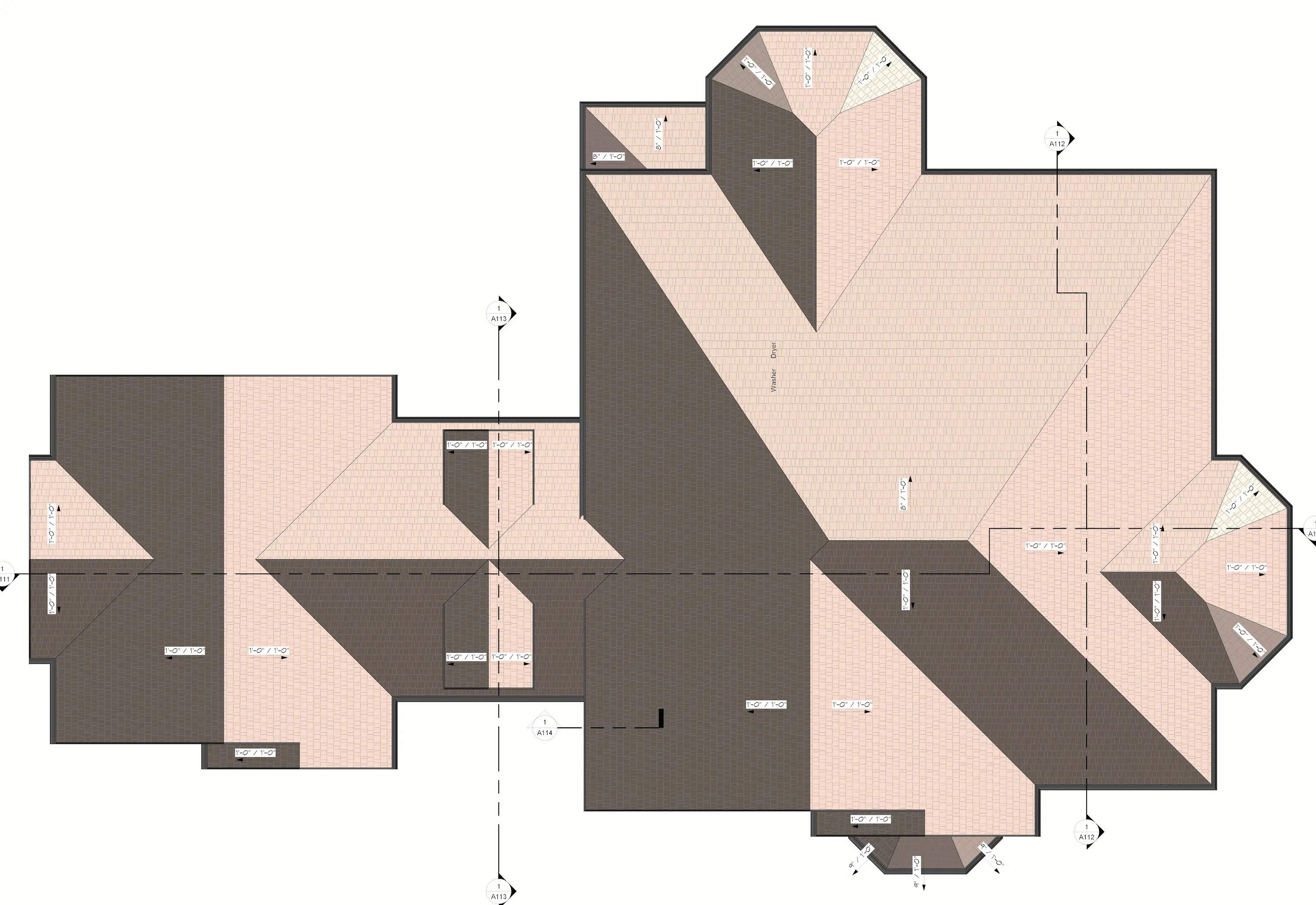

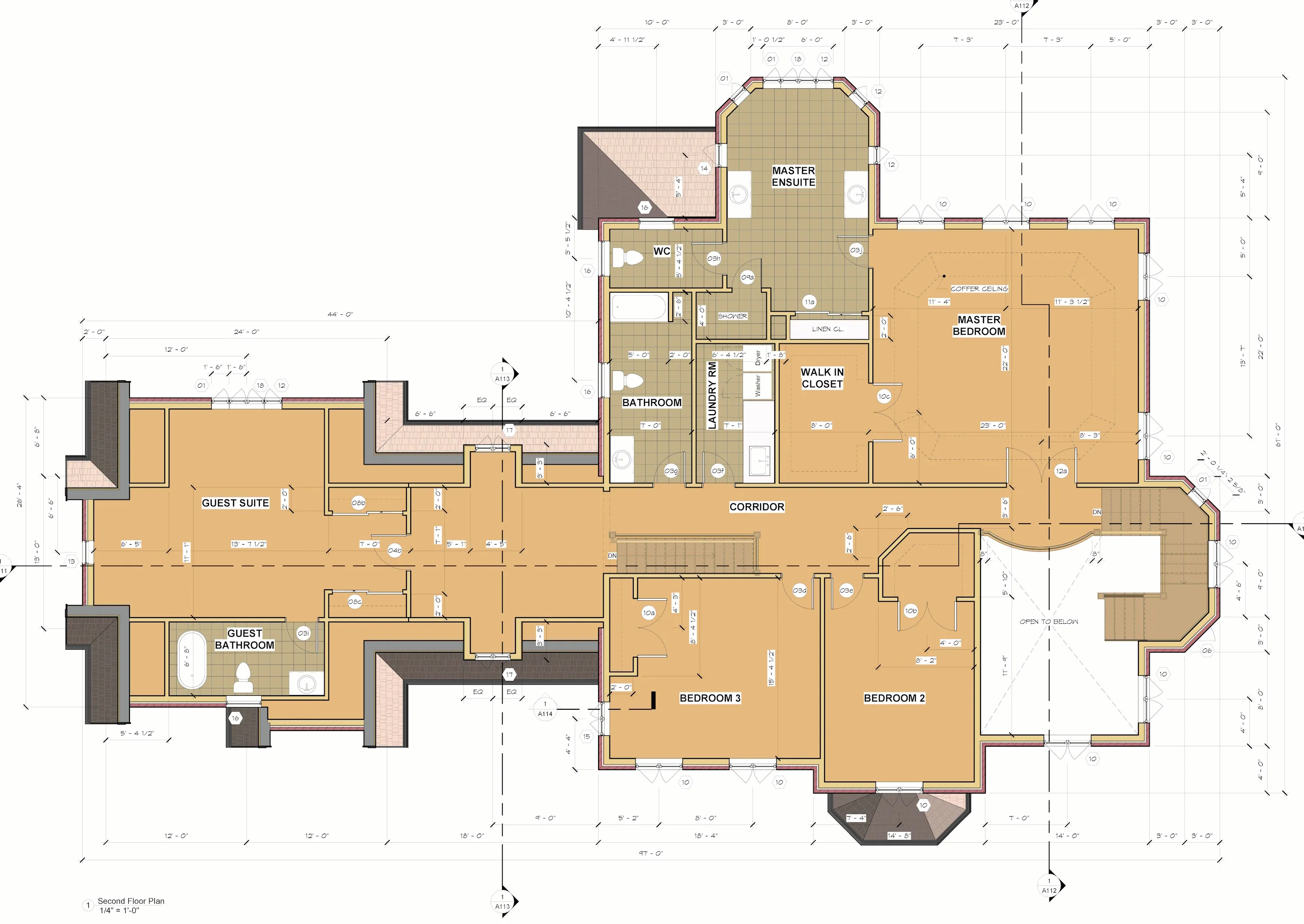

/Manor House - site plan /Manor House - 1F plan /Manor House - 2F plan /Manor House - roof plan

Sections

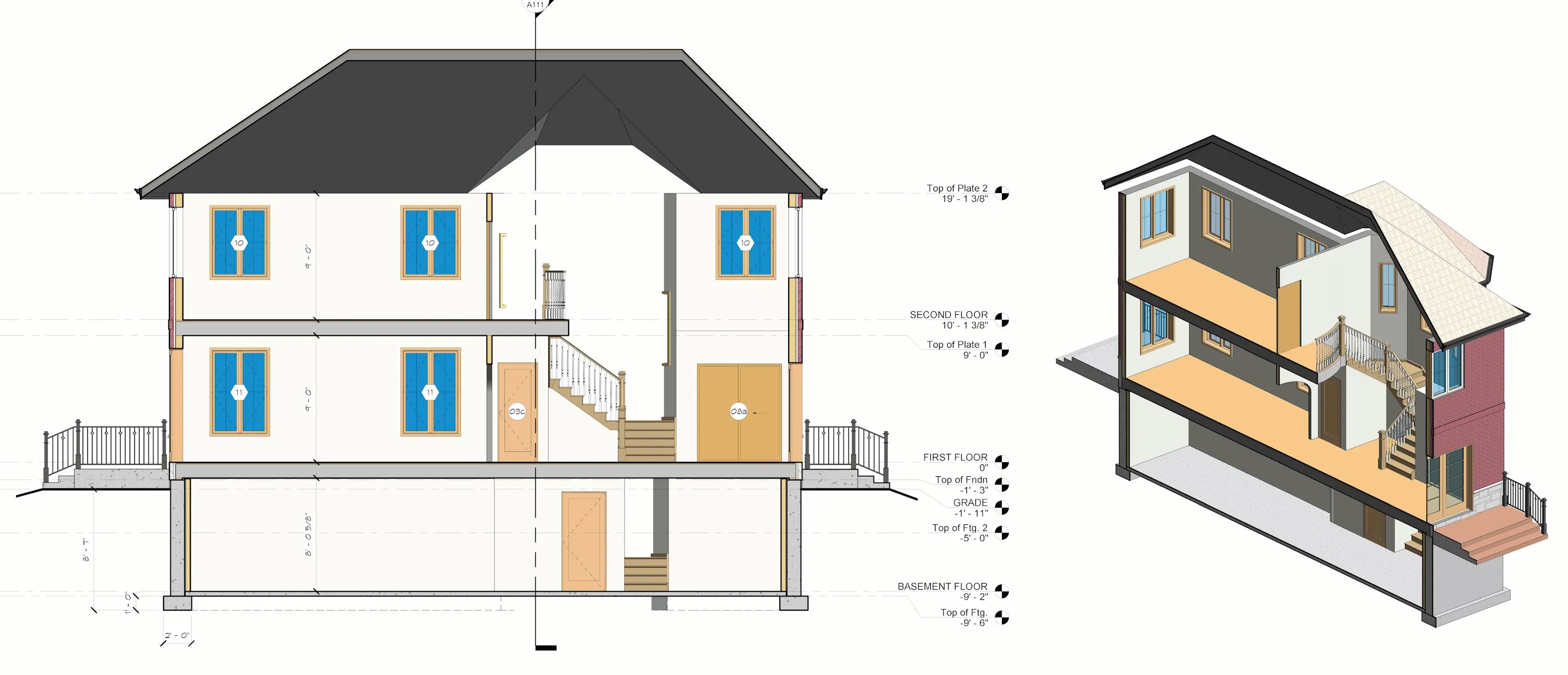

Manor House - entrance section

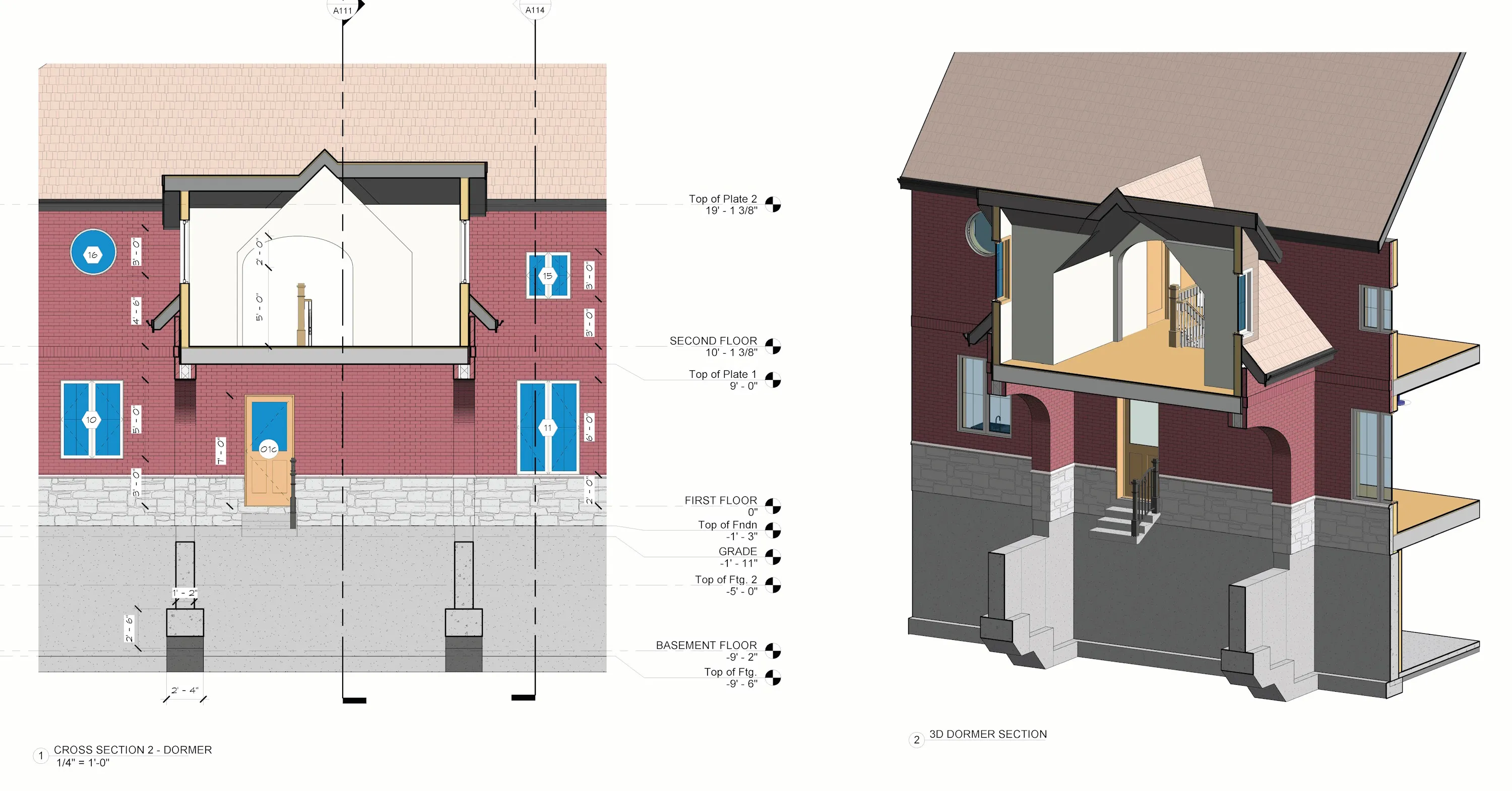

Manor House - dormer section

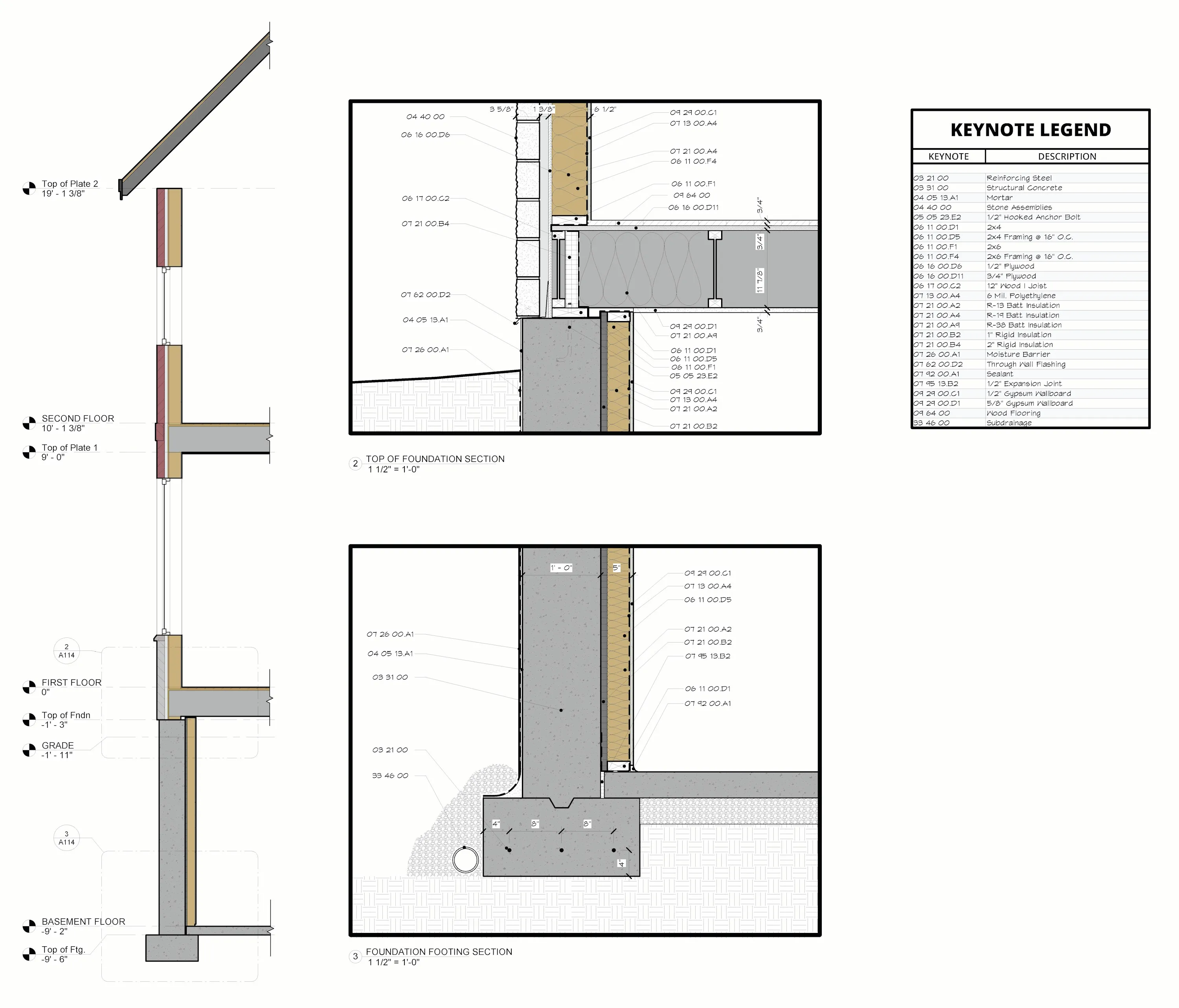

Manor House - wall section
